Air Source Treatment LOE
- Lubricator adds oil to the compressed air automatically. The pressure drop when compressor goes through nozzle, then oil will come to sight feed oil from oil cup , mixes with compressor air and atomized . Controlled the oil by adjustable screw, usually, 1~12 drop is enough for 1000L compress air
Specifications
|
Size |
MINI |
MIDI |
MAXI |
|||||||
|
Medium |
Compressed air |
|||||||||
|
Features of structure |
Direct constant-density lubricator |
|||||||||
|
Mounting Type |
Pipe mounting or foot mounting |
|||||||||
|
Assembly position |
Vertical ±5° |
|||||||||
|
Connection |
G1/8 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
||
|
Standard nominal flow rate |
1300 |
2300 |
2700 |
5500 |
6100 |
6300 |
8400 |
9000 |
||
|
Max. working pressure |
16bar |
|||||||||
|
Min. standard nominal flow rate |
3 l/min |
6 l/min |
10 l/min |
|||||||
|
Capacity of condensate fluid |
22ml |
43ml |
80ml |
|||||||
|
Temperature range |
0~60°C |
|||||||||
|
Materials information |
Housing: Zinc die-casting; Filter bowl and oil bowl: PC; Metal bowl guard: aluminium alloy Sealing: NBR Adjusting Knob: POM |
|||||||||
|
Recommended oil |
ISO VG 32 or the same grade |
|||||||||

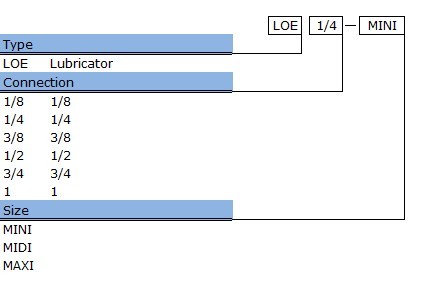

How to order
