PRODUCTSAir Preparation Unit
Pressure Regulator Combinations LRB
- The regulator for an integrated installation,can provide a varity of different pressure gas source,the front and rear sides of each one has a output connection.
Specifications
|
Size |
MINI |
MIDI |
||
|
Medium |
Compressed air |
|||
|
Features of structure |
Directly actuated diaphragm regulator with through pressure supply |
|||
|
Mounting Type |
Via accessory |
|||
|
Assembly position |
Any |
|||
|
Connection |
G1/8 connection of pressure gauge G1/4 connection of gas outlet |
G1/4 connection of pressure gauge G3/8 connection of gas outlet |
||
|
Pressure regulation range |
0.5~7bar |
0.5~12 bar |
||
|
Primary pressure |
1~16bar r |
|||
|
Standard nominal flow rate |
0.5~7 bar |
1800 |
3800 |
|
|
0.5~12 bar |
1600 |
3200 |
||

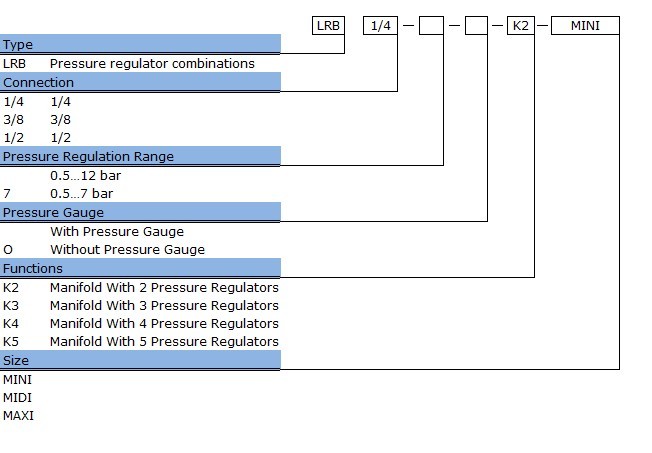

How to order
