Pressure transmitter hygienic rank type

Pressure Transmitter is measuring the high temperature, high viscosity, crystallizing medium ,and corrosives, install on the pipe or container directly , so the isolation diaphragm touch the medium directly , no need the pipe. After temperature compensation and linearity correction converted it into 4-20Madc standard current signal output.
It has flange type (3051/3351LT) and hygienic rank type (3051/3351ST), both communicate with operator by HART to set and monitor. The LT type adopt standard is connected by flange, and ST type by clamp, which is carefully processed on the surface, fineness and cleanliness is hygienic standard, filled fluid is un-pollution material, widely used for food , drink and medicine industry.

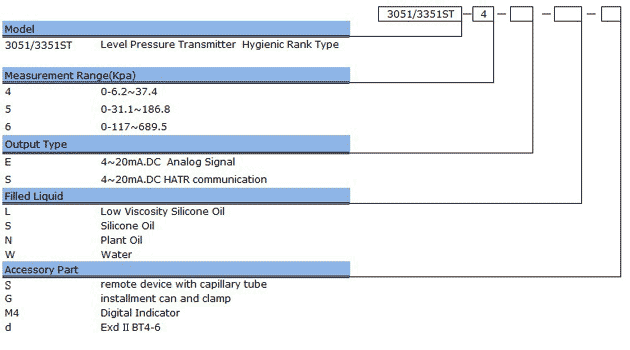

Pressure range(Kpa)		Pressure Transmitter Hygienic Rank Type (3051/3351 ST)
		6.2~37.4	31.1~186.8	117~689.5
Overpressure (Mpa)		2,5(according to different flange type )
Static Pressure influence		±0.25 (3 times FS )
Accuracy		±0.25%F.S.
Output singles		4~20mA, HART
Compensated temperature		0~50℃,-10~80℃ or customized
Media temperature		-30~200℃
Environment temperature		-30~85℃
Temperature influence(%/28℃)		±0.25
Electrical connection		terminals or customized
Protection class		IP65,IP67
Extended flange size		50(2’’),100(4’’)150(6’’)
Vibration		20g, 20~5000Hz
Shock		100g,11ms
material of negative pressure side	Housing	stainless steel 316L
	Vent valve	stainless steel 316L,
	Diaphragm	stainless steel 316L , Hastelloy alloy,
material of positive pressure side	Diaphragm	stainless steel 316L, Hastelloy alloy
	surface	stainless steel 316L
Filled fluid		low viscosity silicone oil, silicone oil, vegetable oil, distilled water
Operating life		＞1×10g pressure cycles
Accessory		Remote transmission device on negative pressure side( 1.5m, 3m and 15m for capillary tube); Installment component and clamp; Digital indicator( from 0~100%) or display pressure; explosion proof type (Exd Ⅱ BT4-6)
