Pressure transmitter flange type

Pressure Transmitter is measuring the high temperature, high viscosity, crystallizing medium ,and corrosives, install on the pipe or container directly , so the isolation diaphragm touch the medium directly , no need the pipe. After temperature compensation and linearity correction converted it into 4-20Madc standard current signal output.
It has flange type (3051/3351LT) and ST type( hygienic rank type), both communicate with operator by HART to set and monitor. The LT type adopt standard is connected by flange, and ST type by clamp, which is carefully processed on the surface, fineness and cleanliness is hygienic standard, filled fluid is un-pollution material, widely used for food , drink and medicine industry.

Pressure range(Kpa)		Pressure Transmitter Flange Type (3051/3351LT)
		1.3~7.5	6.2~37.4	31.1~186.8	117~689.5
Overpressure (Mpa)		2,5,10(according to different flange type )
Static Pressure Influence		±0.25 (3 times FS )
Accuracy		±0.25%F.S.
Output singles		4~20mA, HART
Compensated temperature		0~50℃,-10~80℃ or customized
Temperature influence(%/28℃)		±0.25
Protection class		IP65,IP67
Extended flange size		Flush flange, 50(2’’),100(4’’)150(6’’),200(8’’),250(10’’), or customized
material of negative pressure side	Housing	stainless steel 316L ,Chromium- carbon steel ,hastelloy alloy
	Vent valve	stainless steel 316L, Hastelloy alloy
	Diaphragm	stainless steel 316L, Hastelloy alloy, Monel alloy, Tantalum
material of positive pressure side	Diaphragm	stainless steel 316L, Hastelloy alloy, Tantalum, Monel alloy, Ni, Ti
	surface	Flush flange same as remote diaphragm , 316L for extended flange
Filled fluid		low viscosity silicone oil, silicone oil
Operating life		＞1×10g pressure cycles
Accessory		Remote transmission device on negative pressure side( 1.5m, 3m and 15m for capillary tube); Digital indicator( from 0~100%) or display pressure; explosion proof type (Exd Ⅱ BT4-6)

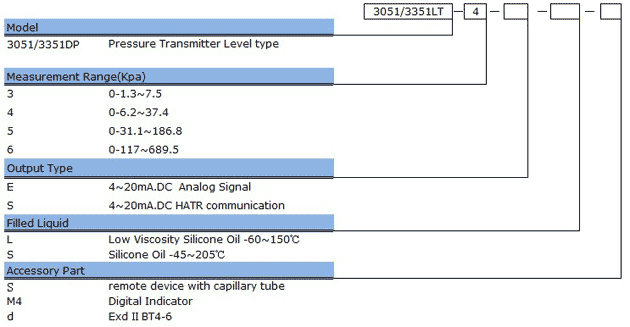

How to order
