Solenoid Valve 3V1
- Direct action type and normally closed mode,flexible in direction change; No need to add oil for lubrication; Several valves can be installed intergrately to save installation space; Affiliated manual devices are equipped to facilitate installation and debugging; Several standard voltage grades are optional.
- Specification
-
Model
3v1-M5
3v1-06
Working Medium
Air (to be filtered by 40μm filter element)
Motion Pattern
Direct Action
Joint Pipe Bore
M5
1/8
Valve Type
3 port 2 position
Operating Pressure
0.15-0.8MPa(21-114Psi)
Proof Pressure
1.5MPa(215Psi)
Temperature
-20~70℃
Orifice size
1.2mm
Lubrication
Not Required
Standard Voltage
AC220V, AC110V, AC24, DC24V, DC12V
Scope of Voltage
AC: ± 15%, DC: ± 10%
Power Consumption
AC:3.5VA DC:3.0W
Protect
IP65(DIN40050)
Temperature Classification
B Class
Electrical entry
Terminal / Grommet
Material of Body
Aluminum Alloy
Max. Frequency
10 Cycle /sec
Shortest Activating Time
0.05 Second

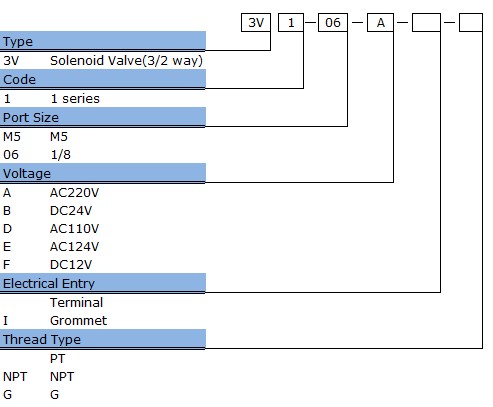

- How to order
-
