Compact Hydraulic Cylinder ISD

*Axial install and radial install are optional according to different requirement

*Good quality cropper HT62 for front cover, electro-plating black or electrophoresis treatment for cylinder barrel

 * On the premise that keep the operating precision and life time , the total length only 1/2—1/3 of other hydraulic cylinder

* Adopt buried installment, without any accessories , will save space

* Use an simple assemble process,   easy to assemble and maintain

* Adopt high-temperature resistant seal, so that hydraulic cylinder can be work at 180°C

 (Please inform in advance when order )

*Reserve the space for magnetic switch on cylinder barrel, it will be easy for install and adjust the position for magnetic switch .

(Please inform in advance when order )

* Put a adjustable screw on the end of shaft, that cylinder can be adjustable during stroke

(Please inform in advance when order)

* On the base of standard cylinder can produce varies of non-standard products to meet different requirement.

Specification

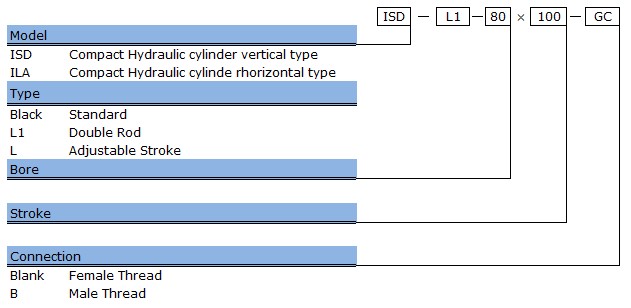

How to order
