PRODUCTSHydraulic Cylinder
Hydraulic Cylinder HOB
- HOB serieshydro-cylinder is capable of manufacturing cylinders with bore of 125-800mm . With the unique technology of cylinder body internal processing and welding, piston rod surface treatment, cylinder assembly as well as advanced detecting equipment and perfect test devices, the hydro-hoists made by the company enjoy great popularity and are widely used in hydro-power engineering projects, metallurgical industry, construction industry, aviation and cosmonautical industry, ships, vehicles, cranes, textile & chemical industry, plastic injection mounding machines, elevators, ship-lifts, offshore well-drilling platforms, etc.
*Self-lubricating bearing, so shaft is no more need lubrication
*Add adjustable stroke on the end of cylinder,so that cylinder can change the position smoothly
(Please inform in advance when order)
* varies of accessories are optional to meet different requirement
*Adopt high-temperature resistant seal, so that hydraulic cylinder can be work at 180°C
(Please inform in advance when order )
* Put a adjustable screw on the end of shaft, that cylinder can be adjustable during stroke
(Please inform in advance when order )
* On the base of standard cylinder can produce varies of non-standard products to meet different requirement.
Specifications
|
Hydraulic cylinder bore |
40 |
50 |
63 |
80 |
100 |
125 |
150 |
160 |
180 |
200 |
250 |
|
|
Max. stroke(mm |
1200 |
2000 |
3000 |
|||||||||
|
Heavy Type |
Rated pressure |
140 kgf/cm2 |
||||||||||
|
Pressure-resistant |
210 kgf/cm2 |
|||||||||||
|
Min. starting pressure |
3 kgf/cm2 |
|||||||||||
|
Operating temperature range(℃) |
-10~+80(Ambient temperature and oil temperature) |
|||||||||||
|
Medium |
Hydraulic oil |
|||||||||||

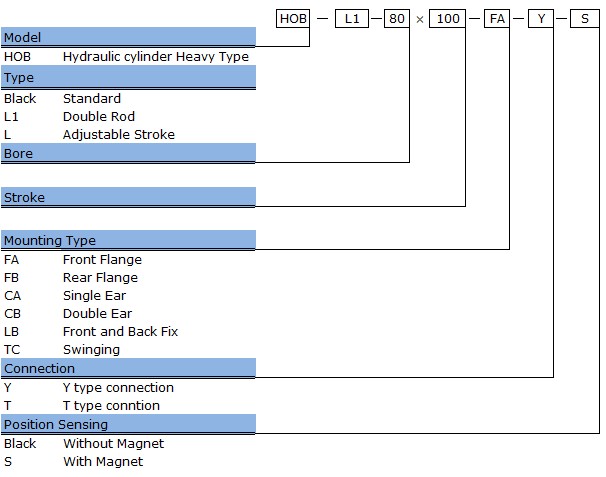

How to order
