Solenoid Valve 263

  • solenoid valve
  • Normal usage time:10 million times above Low power consumption, quick response. Oil Seal frictional resistance is small, increase oil seal life.
  • Specifications

  • Model

    2636000

    2636200

    2637050

    2637250

    Working Medium

    40 Micron Filtered Air

    The Position Counting

    Two-position Five-way

    Joint Pipe Bore

    G1/4

    G1/2

    Operating Temperature

    5~+50.C(41-122.F)

    Effective Sectional Area

    10mm2(CV=0.56)

    40mm2(CV=2.23)

    Working Pressure

    0.15~1.0Mpa

    Max. Pressure Resistance

    1.2Mpa

    Protection Class

    IP65(DIN40050)

    Insulation

    F

    Wiring Form

    Lead Wire or Connector Type

    Voltage Range

    ±10％

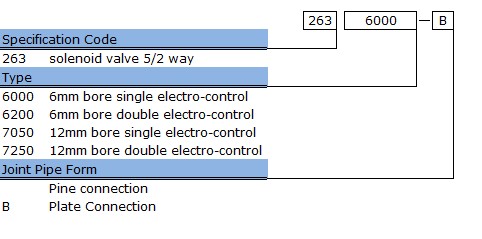

  • How to order
