Solenoid Valve VF

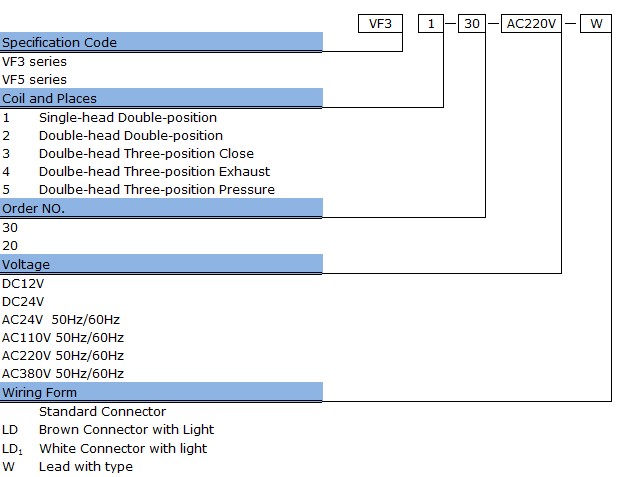

Model

VF3130

 VF3230

VF3330

VF3430

VF3530

VF5120

VF5220

VF5350

VF5450

VF5550

Position and Way NO.

Two-position Five-way

Three-position Five-way

Two-position Five-way

Three-position Five-way

Effective Section Area

16mm²(CV=0.89)

12mm²(CV=0.67)

25mm²(CV=1.40)

18mm²(CV=1.00)

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type

Working-pressure

0.15~0.8MPa

Max. Pressure Resistance

1.2 MPa

Operating Temperature

5~50℃

Voltage Range

±10％

Power Consumption

AC:4.5VA DC:3W

Insulation ﹠Protection Class

F Class. IP65

Wiring Form

Lead Wire or Connector Type

Highest Action Frequency

5 Cycle/Sec

Shortest Excitation Time

0.05 Second
