Solenoid Valve 4M

Internally piloted structure; Structure in sliding column mode: good tightness and sensitive reaction; Double control solenoid valves have memory function; Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life; No need to add oil for lubrication; Install in the side plate with the surface upward,which can be used by directly connecting with the actuators Affiliated manual devices are equipped to facilitate installation and debugging; Several standard voltage grades are optional.

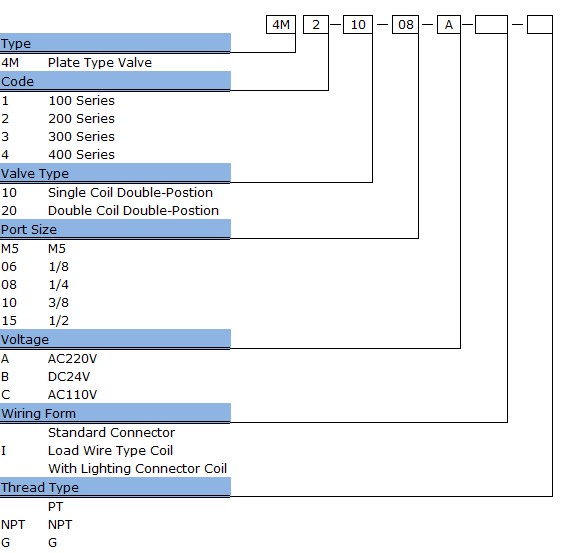

Type	4M120-M5	4M110-06 4M120-06	4M210-06 4M220-06	4M210-08 4M220-08
Working Medium	Air (to be filtered by 40μm filter element)
Action	Internal piloted
Port Size	In=Exh=M5	In=Exh=1/8’’		In=1/4’’ Exh=1/8’
Orifice Size	5.5mm2(CV=0.31)	12.0mm2(CV=0.67)	14.0mm2(CV=0.78)	16.0mm2 (CV=0.89)
Valve Type	5 port 2 position
Operating Pressure	0.15-0.8MPa(21-114Psi)
Proof Pressure	1.5MPa(215Psi)
Operating Temperature	-5~60℃
Material of Body	Aluminum Alloy
Lubrication	Not required
Voltage Range	-5%~10%
Power Consumption	DC24V:3.0W, AC110V:2.5VA, AC220V:2.0VA

Type	4M310-08 4M320-08	4M310-10 4M320-10	4M410-15 4M420-15
Working Medium	Air (to be filtered by 40μm filter element)
Action	Internal piloted
Port Size	In=Exh=1/4’’	In=3/8’’Exh=1/4’’	In=Exh=1/2’’
Orifice Size	25.0mm2(CV=1.39)	30.0mm2(CV=1.67)	50.0mm2(CV=2.79)
Valve Type	5 port 2 position
Operating Pressure	0.15-0.8MPa(21-114Psi)
Proof Pressure	1.5MPa(215Psi)
Operating Temperature	-5~60℃
Material of Body	Aluminum Alloy
Lubrication	Not required
Voltage Range	-5%~10%
Power Consumption	DC24V:3.0W, AC110V:2.5VA, AC220V:2.0VA
