Solenoid Valve 4V300

Pilot-oriented mode:optional for internal or external; Structure in sliding column mode: good tightness and sensitive reaction; Three position solenoid valves have three kinds of central function for your choice; Double control solenoid valves have memory function; Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life; No need to add oil for lubrication; It is available to form integrated valve group with the base to save installation space; Affiliated manual devices are equipped to facilitate installation and debugging; Several standard voltage grades are optional.

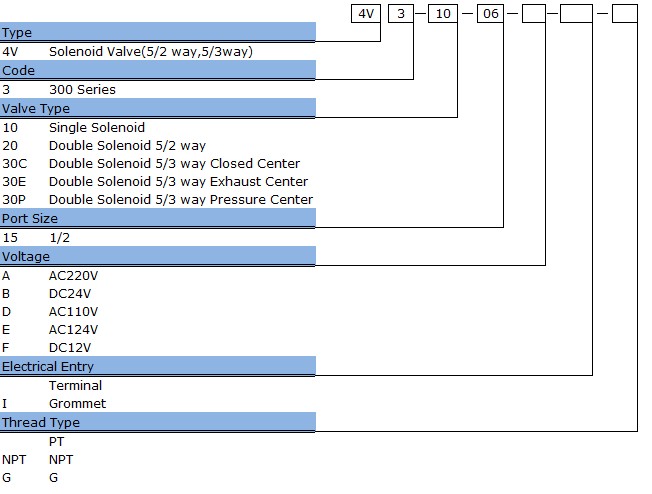

Model	4V310-08 4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10 4V320-10	4V330C-10 4V330E-10 4V330P-10
Position and Way No.	Two-position Five-way	Three-position Five-way	Two-position Five-way	Three-position Five-way
Effective Sectional Area	25mm²(CV=1.40)	18mm²(CV=1.00)	30mm²(CV=1.68)	18mm²(CV=0.5)
Position and Way NO.	Two-position Three-way			Two-position Three-way
Effective Section Area	25mm²(CV=1.40)			30mm²(CV=1.68)
Joint Pipe Bore	Air Inlet=Air Outlet=Exhaust=G1/4"			Air Inlet=Air Outlet=G3/8" Exhaust=G1/4"
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-pressure	0.15~0.8MPa
Max. Pressure Resistance	1.2 MPa
Operating Temperature	5~50℃
Voltage Range	±10％
Power Consumption	AC:2.5VA DC:0.5W
Insulation ﹠Protection Class	F Class. IP65
Wiring Form	Lead Wire or Connector Type
Highest Action Frequency	5 Cycle/Sec
Shortest Excitation Time	0.05 Second
