PRODUCTSSolenoid Valve

Solenoid Valve 802

  • solenoid operated valve
  • 802 Series 2 3 power control valve, there is always pass and often closed; Single and double electric power divided. The use of telecommunications numbers of switch valve control to achieve the work. Choose to use when you clean and lubricated compressed air contains.
  • Specifications

  • Model

    8020750

    8022750

    8021750

    8020850

    8022850

    Working Medium

    40 Micron Filtered Air

    The Position Counting

    Two-position Three-way

    Joint Pipe Bore

    Inlet=Outlet=G1/4

    Inlet=Outlet=G1/2

    Operating Temperature

    5~+50.C(41-122.F)

    Effective Sectional Area

    10mm2(CV=0.56)

    40mm2(CV=2.23)

    Working Pressure

    0.15~1.0Mpa

    Max.Pressure Resistance

    1.2Mpa

    Protection Class

    IP65(DIN40050)

    Insulation

    F

    Wiring Form

    Lead Wire or Connector Type

    Voltage Range

    ±10％

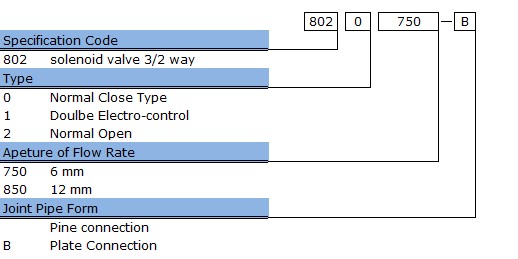

  • How to order
