Solenoid Valve 3V300
- Pilot-oriented mode:optional for internal or external; Structure in sliding column mode: good tightness and sensitive reaction; Double control solenoid valves have memory function; Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life; No need to add oil for lubrication; Affiliated manual devices are equipped to facilitate installation and debugging; Several standard voltage grades are optional.
Specification
|
Type |
3V310-08 |
3V320-08 |
3V310-10 |
3V320-10 |
|
Working Medium |
Air (to be filtered by 40μm filter element) |
|||
|
Action |
Internal Piloted |
|||
|
Port Size |
In=Out=1/4’’ |
In=Out=3/8’’ |
||
|
Orifice Size |
25.0mm2(CV=1.39) |
30.0mm2(CV=1.67) |
||
|
Valve Type |
3 port 2 position |
|||
|
Operating Pressure |
0.15-0.8MPa(21-114Psi) |
|||
|
Proof Pressure |
1.5MPa(215Psi) |
|||
|
Temperature |
-20~70℃ |
|||
|
Material of Body |
Aluminum Alloy |
|||
|
Lubrication |
Not required |
|||
|
Voltage Range |
AC: ±15％, DC: ±10％ |
|||
|
Standard Voltage |
AC110V,AC220V,AC24V,DC24V,DC12V |
|||
|
Power Consumption |
AC:2.5VA DC:2.5W |
|||
|
Protection |
IP65(DIN40050) |
|||
|
Temperature Classification |
B Class |
|||
|
Electrical Entry |
Terminal / Grommet |
|||
|
Max. Frequency |
5 Cycle/sec |
|||
|
Activating Time |
0.05 Second and below |
|||

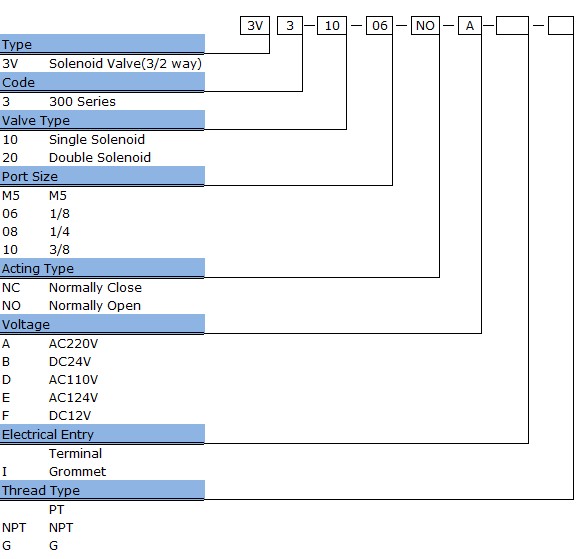

How to order
