Solenoid Valve 3V200
- Pilot-oriented mode:optional for internal or external; Structure in sliding column mode: good tightness and sensitive reaction; Double control solenoid valves have memory function; Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life; No need to add oil for lubrication; Affiliated manual devices are equipped to facilitate installation and debugging; Several standard voltage grades are optional.
- Specification
-
Type
3V210-06
3V220-06
3V210-08
3V220-08
Working Medium
Air (to be filtered by 40μm filter element)
Action
Internal Piloted
Port Size
In=Out=1/8’’
In=Out=1/4’’
Orifice Size
14.0mm2 (CV=0.78)
16.0mm2 (CV=0.89)
Valve Type
3 port 2 position
Operating Pressure
0.15-0.8MPa(21-114Psi)
Proof Pressure
1.5MPa(215Psi)
Temperature
-20~70℃
Material of Body
Aluminum Alloy
Lubrication
Not required
Voltage Range
AC: ±15％, DC: ±10％
Standard Voltage
AC110V,AC220V,AC24V,DC24V,DC12V
Power Consumption
AC:2.5VA DC:2.5W
Protection
IP65(DIN40050)
Temperature Classification
B Class
Electrical Entry
Terminal / Grommet
Max. Frequency
5 Cycle/sec
Activating Time
0.05 Second and below

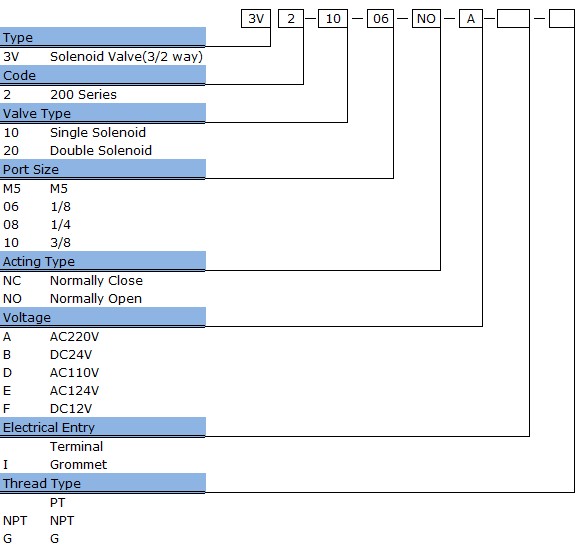

- How to order
-
