Solenoid Valve 3A
- Structure in sliding column mode: good tightness and sensitive reaction; Double air control valves have memory function; Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life; No need to add oil for lubrication; Malti-mounting helps to install and apply.
- Specification
-
Type
3A110- M5
3A120- M5
3A110- 06
3A120- 06
3A210- 06
3A220- 06
Working Medium
Air (to be filtered by 40μm filter element)
Action
Exterior control
Port Size
M5
1/8’’
In=Out=1/8’’
Orifice Size
5.5mm2 (CV=0.31)
12.0mm2 (CV=0.67)
14.0mm2 (CV=0.78)
Valve Type
3 port 2 position
Operating Pressure
0.15-0.8MPa(21-114Psi)
Proof Pressure
1.5MPa(215Psi)
Temperature
-20~70℃
Material of Body
Aluminum Alloy
Lubrication
Not required
Max. Frequency
5 Cycle/sec
-
Type
3A210- 08
3A220- 08
3A310- 08
3A320- 08
3A310- 10
3A320- 10
Working Medium
Air (to be filtered by 40μm filter element)
Action
Exterior control
Port Size
In=Out=1/4’’
In=Out=3/8’’
Orifice Size
16.0mm2 (CV=0.89)
25.0mm2 (CV=1.39)
30.0mm2 (CV=1.67)
Valve Type
3 port 2 position
Operating Pressure
0.15-0.8MPa(21-114Psi)
Proof Pressure
1.5MPa(215Psi)
Temperature
-20~70℃
Material of Body
Aluminum Alloy
Lubrication
Not required
Max. Frequency
5 Cycle/sec

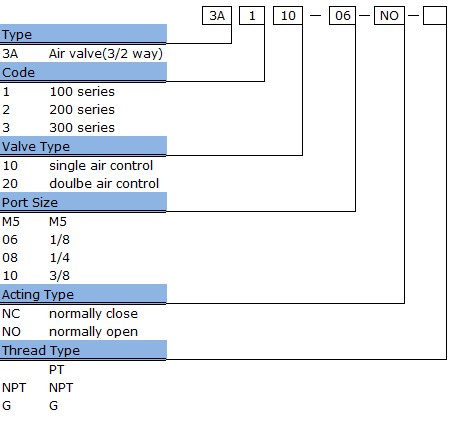

- How to order
