Solenoid Valve 2630

• Specifications

• Model	2630600
  Working Medium	40 Micron Filtered Air
  The Position Counting	Two-position Four-way
  Joint Pipe Bore	Inlet=Outlet=Exhaust=G1/8
  Operating Temperature	5~+50.C(41-122.F)
  Effective Sectional Area	4mm2(CV=0.23)
  Working Pressure	0.15~1.0Mpa
  Max.Pressure Resistance	1.2Mpa
  Protection Class	IP65(DIN40050)
  Insulation	F
  Wiring Form	Lead Wire or Connector Type
  Voltage Range	±10％

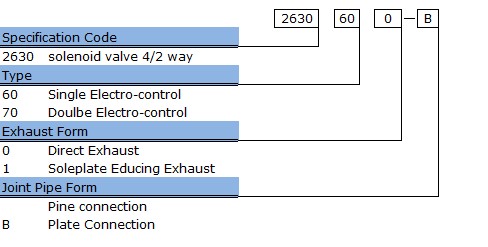

How to order
